"LI" make the Application : Drying, sterilizing, curing, preheating, conditioning.
ECONOMY MODEL : Double wall design inlet port at the bottom allows air entry, air passess through heating elements, is warmed then flows upward through the inner chamber and flows out through a 2" adjustable vent at the top.(include optional motorized air blower for fast drying times).
ECONOMY MODEL : Double wall design inlet port at the bottom allows air entry, air passess through heating elements, is warmed then flows upward through the inner chamber and flows out through a 2" adjustable vent at the top.(include optional motorized air blower for fast drying times).
OVEN - GRAVITY CONVECTION
OVEN - MECHANICAL CONVECTION
"LI" make Application : Drying, sterilizing, curing, preheating, conditioning.
Trial wall design for precise temperature control and excellent uniformity. Air flow pattern provides uniform temperature. Heaters mounted in preheating chamber at sides of oven heat air. Motorized blower mounted on top sucks air form center of chamber and circulates it through sides, warm air enters chamber through ports at sides and bottoms. This ensures largs amount of heated air is circulated within chamber, a small potion is pushed out through adjustable vent.
Trial wall design for precise temperature control and excellent uniformity. Air flow pattern provides uniform temperature. Heaters mounted in preheating chamber at sides of oven heat air. Motorized blower mounted on top sucks air form center of chamber and circulates it through sides, warm air enters chamber through ports at sides and bottoms. This ensures largs amount of heated air is circulated within chamber, a small potion is pushed out through adjustable vent.
* Temperature Range : Ambient + 5'c to 250'c
* Temperature control accuracy + - 1'c of set point
* Temperature uniformity + -0.5% of set value
* Control type : Time proportionating digital / Microprocessor PID, Autotune, Calibration off set.
* Temperature display : 3 1/2 digit LED.
* Rockwool Insulation.
* Input Voltage : 230 Volts AC, 50 Hz
STD MODEL GMP MODEL
* Outer cabinet mild steel powder coated * Outer cabinet SS 304 grade dull matt finish
* Inner chamber stainless steel 304 grade * Inner stainless steel mirror finish
* Digital temp. indication & control * Digital temp. indication & control
* Silicon door gasket * Silicon door gasket
* Supplied with GI wire mesh shelves * SS rod meshes shelves
Extras : a. Forced air circulation by means of a motorized blower
* Temperature Range : Ambient + 5'c to 250'c
* Temperature control accuracy + - 1'c of set point
* Temperature uniformity + -0.5% of set value
* Control type : Time proportionating digital / Microprocessor PID, Autotune, Calibration off set.
* Temperature display : 3 1/2 digit LED.motorized fan blower for air circulation.
* Rockwool Insulation.
* Input Voltage : 230 Volts AC, 50 Hz
STD MODEL GMP MODEL
* Outer cabinet mild steel powder coated * Outer cabinet SS 304 grade dull matt finish
* Inner chamber stainless steel 304 grade * Inner stainless steel mirror finish
* Digital temp. indication & control * Digital temp. indication & control
* Silicon door gasket * Silicon door gasket
* Supplied with GI wire mesh shelves * SS WIRE meshes shelves

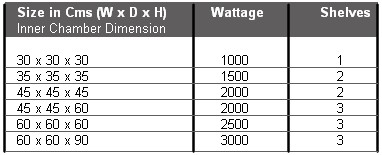

Size in Cms (W x D x H) Wattage Shelves
Inner Chamber Dimension
* Temperature control accuracy + - 1'c of set point
* Temperature uniformity + -0.5% of set value
* Control type : Time proportionating digital / Microprocessor PID, Autotune, Calibration off set.
* Temperature display : 3 1/2 digit LED.motorized fan blower for air circulation.
* Rockwool Insulation.
* Input Voltage : 230 Volts AC, 50 Hz
STD MODEL GMP MODEL
* Outer cabinet mild steel powder coated * Outer cabinet SS 304 grade dull matt finish
* Inner chamber stainless steel 304 grade * Inner stainless steel mirror finish
* Digital temp. indication & control * Digital temp. indication & control
* Silicon door gasket * Silicon door gasket
* Supplied with GI wire mesh shelves * SS WIRE meshes shelves

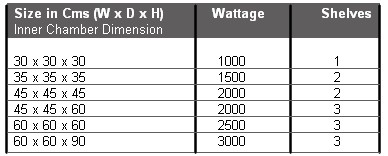

Size in Cms (W x D x H) Wattage Shelves
Inner Chamber Dimension
